960W DIN Rail Power Supply

  Enquiry / contact me

With 95% efficiency and a 1,440W peak rating

Electronics & Electricity, Industrial Equipment & Supplies

960W DIN Rail Power Supply
960W DIN Rail Power Supply

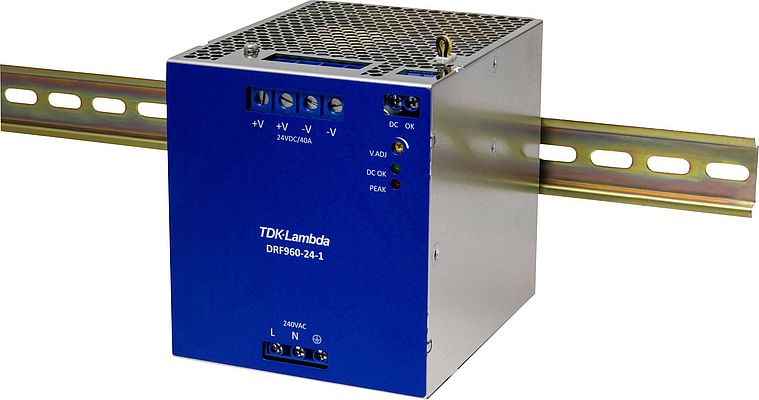

The DRF960-24-1 DIN rail mount AC-DC power supply from TDK-Lambda (brand of TDK Corporation) is rated at 24V 40A (960W) with a 60A (1,440W) peak for 4 seconds. Its efficiency makes it possible to generate less internal heat, for cooler electrolytic capacitors. The operating field life is of 10 years at 75% load, 40°C ambient, and 230Vac input. This power supply can fit industrial applications as factory automation, process control and test and measurement equipment.


Long last and safety certified


The DRF960 is housed in a robust metal enclosure, measures 123.4mm in height, 139mm deep and 110mm width. It can operate from a wide range of 180 - 264Vac, 47 - 63Hz input. Input to output isolation is 3,000Vac, input to ground 1,500Vac and output to ground 500Vac. The DRF960 is rated for operation in -25°C to +70°C ambient temperatures ( 40°C cold start), derating linearly above 60°C to 50% load at 70°C. Last, it is safety certified to IEC/EN/UL/CSA 60950-1, UL 508 and is CE marked for the Low Voltage, EMC and RoHS Directives.

Posted on May 8, 2019 - (246 views)
