Ming Tai will showcase application tips of variable force springs and variable torque spring in Hannover Messe at Hall3 B21. Engineers will receive attracted demonstration all functions about tensioning & loading, counterbalancing, retrieving & returning f springs. It will give engineering more possibility when develop a new product.
Ming Tai presents some Engineer’s Tips of Variable Force Springs and Variable Torque Spring
Variable force spring and variable torque spring can be unfolded negative gradient, positive gradient compounded in a spring. It breaks through the influence of the traditional spring that is affected by Hooke's law, so that the stroke and the force are no longer proportionally increased, but along with various elastic force-displacement combinations, such as negative slope. So, stepped constant force can be achieved.
Here we make some examples which show relations between load (force or torque) and stroke, these can be used on specific occasion for engineering reference.

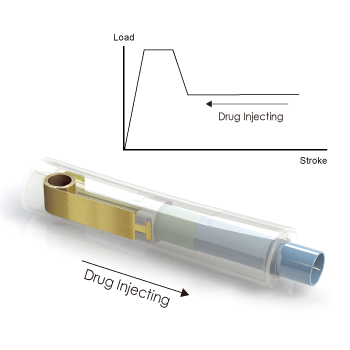

Pen Type Drug Injector Application
The spring exerts constant force to keep the drug flow fixed, preventing the patient from feeling uncomfortable when applying it. It features stretch force in end of the stroke to ensure all drug can be injected entirely. (See Example-1).

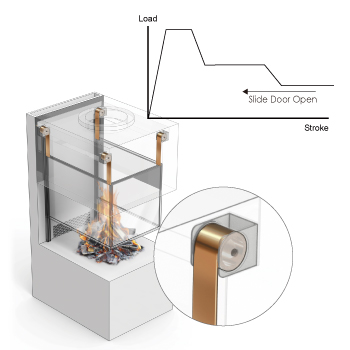

Fireplace up-down Slide Door
Variable force spring can be applied to up-down slide door of fire place.
When the door is closed, the spring force is less than the weight of door; while the door in middle stroke, the spring force is equal to the door weight. When fully open, the spring exerts force greater than the door weight to secure the door does not slide down. (See example-2)

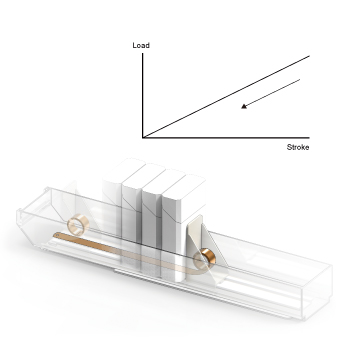

Point of Purchase Display
Variable force spring can be applied to point of purchase display. The spring export variable force to match the quantity of display items. While the large force can ensure push large quantity display item smooth, the small force push small quality items availably and avoid flattening the display items. (See Example-3).

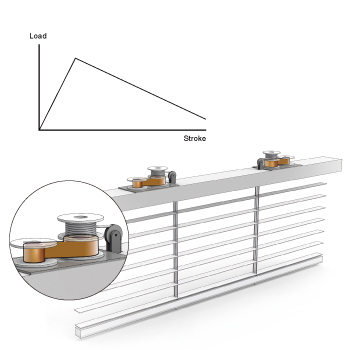

Cordless Shades
The variable torque spring can be applied to cordless shade, it makes user to adjust curtain up and down easily. The spring exerts smaller torque step by step, which generate balance of gravity to allow the curtain to stop at any height. (See example-4).
More Spring Solutions
Engineers are welcome to visit Ming Tai’s booth at Hall3 B21, during April 17-21, 2023 to experience the application tips of variable force spring and variable torque spring for general industry, automotive, smart office, home appliances, industrial control. Also, you are welcome to visit Ming Tai website at www.powerspring.com.tw for more solutions, or online shop at shop.powerspring.com.tw to look for standard spec spring to meet your needs.
