Air Operated Hoists
Air Operated Hoists

J D Neuhaus has introduced further new models into their EH range of air operated monorail hoists. These robust units provide solutions for heavy duty lifting in the harshest environments including onshore and offshore, the cement industry, steelworks and shipbuilding etc.
Two versions, for each of the 75 and 100 tonne lifting capacity products in the EH range are now available in both double trolley as well as the previously available 4 trolley traverse drive versions. All these models utilise a new air motor unit providing a 9kW power output at a 6 bar air pressure supply. This motor incorporates well proven technology for the lift/drive and integrated braking operations, based upon a stepped brake piston and self-lubricating rotor unit.

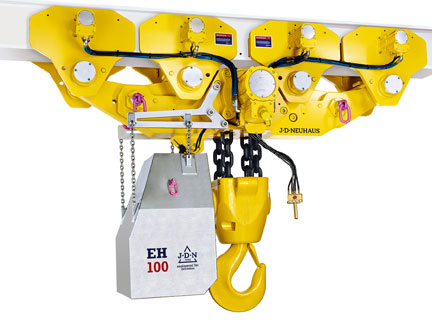

These redesigned 4 trolley drive version hoists are designated as EH 75 and EH 100 offering 75 or 100 tonnes lift capacities respectively. The new twin trolley drive versions, which offer more compact units for operation where limited space is available, are designated as EH 75C and EH 100C. The latest JDN design features and advantages are incorporated throughout the range, which include reductions in overall size as well as up to 50% energy savings from reduced air consumption. Significant weight reductions for the 4 trolley hoist units have also been achieved, being 250kg for the EH 75 and 600kg for the EH 100. The twin trolley compact EH 75C and EH 100C models each offer a further weight reduction of 350kg over their 4 trolley counterpart.

Faster load lift/lower times (up to 50%) are also now available, with a general decrease in the overall dimensions. A pro-active gearbox cooling system has also been incorporated utilising the expanding exhaust air from the drive motor, while noise levels during operation have also been reduced. Other new developments include pin valves utilised as hoist limiters for top and lower hook position, with parallel chain sprocket arrangements also now incorporated.
