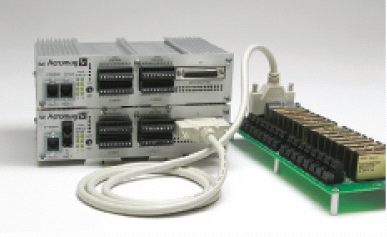

The ES2153 converts 16 DC current and 16 DC voltage single- ended analogue inputs from various transducers and instruments for transmission to an Ethernet-based control network. A DB25 serial port provides an alternative voltage input connection from a rack of 7B or 8B signal conditioning modules to monitor a wider variety of sensors including temperature, frequency, and load cells. Modbus TCP/IP and UDP/IP protocol communication, as well as peer-to-peer messaging, are supported. Fast scanning with high-resolution 16-bit A/D captures data from all 32 channels in less than 10mS. The stackable, highdensity packaging enables installation of nearly 100 I/O in a space-saving footprint. A high-strength aluminum enclosure gives IP20 protection with 50g shock and 5g vibration resistance. The rugged design is suitable for mounting on DIN rails, walls, or directly on machinery.
Analogue Input Module
