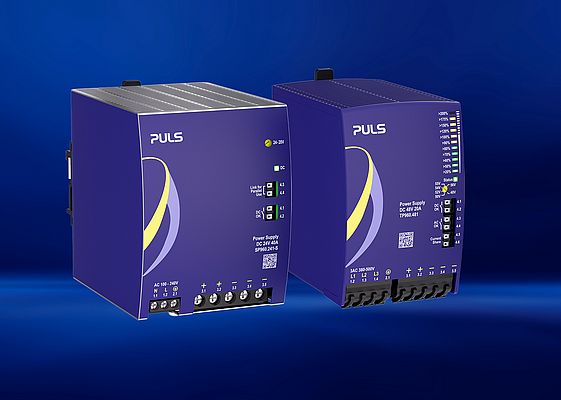

The new PLANET DIN rail power supplies from PULS feature active load sharing in parallel operation. Thanks to this technology, high-power systems can be realised more quickly using fanless power supplies. The precise control balances the load between power supplies, ensuring even thermal distribution and thus optimal system reliability. The family currently includes single-phase and three-phase models with 960 W. An efficiency level of 97 % reduces energy losses and heat generation, lowers operating costs, and contributes to CO₂ reduction. The reduced heat generation makes the compact design of a three-phase 960 W unit with a width of just 79 mm possible, creating more space in the control cabinet.
Highly flexible and reliable
For applications with dynamic loads – such as motor control in intralogistics and robotics – the devices offer Dynamic BonusPower, which automatically adapts to the changing demands of the application. With this technology, the three-phase TP960 can provide power reserves between 120 % (continuous) and 200 % (12 seconds), depending on the duration. This enables reliable handling of acceleration processes without the need to use oversized power supplies.
With an MTBF of up to 325,000 hours and a minimum service life of 100,000 hours, the new power supplies are designed for long-term operation. The sophisticated convection-cooled design supports reliable continuous operation without a fan. The optimised HiccupPlus protection mechanism increases system safety in the event of overload or short circuit.
Convenient for installation and maintenance
Quick-connect terminals and a voltage selector with preset values ensure fast installation of the three-phase variants. An LED load indicator, AC-OK/DC-OK signals and documentation accessible via QR code make installation and maintenance easier. The innovative DIN rail power supplies help users to save space, energy and overall operating costs at the same time.
