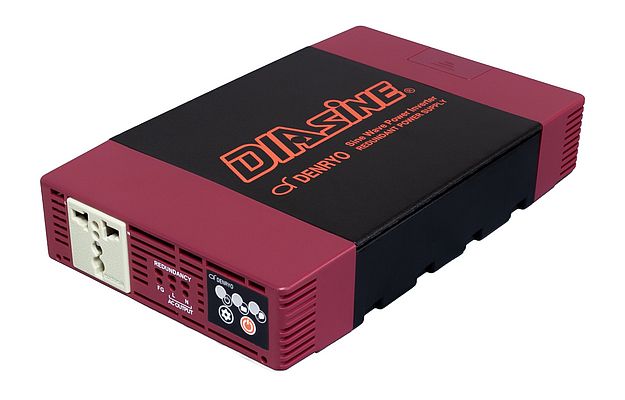

DENRYO is pleased to announce the release of a new 230 Vac output model in the DIASINE® GR Series, a lineup of fanless pure sine wave power inverters supporting redundant operation. The new model features selectable output voltage settings of 230 (default) / 200 / 220 / 240 Vac, offering flexibility for a wide range of applications in infrastructure and industrial equipment. With support for parallel operation of up to six units, users can scale the output up to 1.8 kVA while maintaining a fanless design. DENRYO’s patented synchronization control technology enables parallel operation using only AC output wiring, eliminating the need for dedicated control boards or synchronization signals. This significantly simplifies both installation and system configuration.
The new model also supports N+1 redundancy, allowing for easy capacity expansion after installation and enabling system continuity even if one unit fails, enhancing both system stability and reliability. In addition to these new features, the model retains key characteristics of the DIASINE® all series, such as reverse polarity protection, a wide input voltage range, and a 1U height low-profile design. Depending on the model, the temperature range for operation starts at -20 °C and goes up to 60 °C, maximum with derated output.
