Precision is key in robotics and automation. Hutchinson has developed a custom magnet ring designed to meet the most demanding requirements, achieving an absolute angular measurement accuracy of ±0.02°, beyond current market standards.
Robotic arms, humanoid exoskeleton, and industrial machinery all rely on compact, high-performance actuators. To meet these needs, a leading player in integrated motion systems turned to Hutchinson for a solution that could deliver unmatched angular precision.
Tailor-Made Innovation: Dual-Track Nonius Magnet Rings

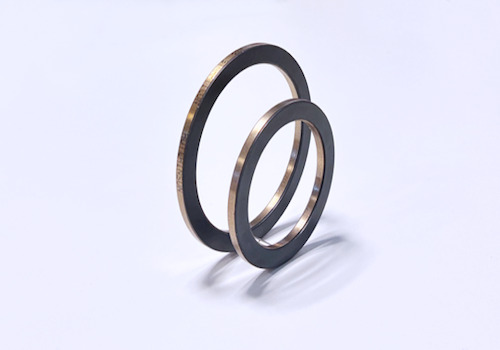

Standard magnetic targets offer an accuracy of ±0.1°, which fell short of the client’s expectations. Hutchinson responded with a bespoke design: a pair of dual-track Nonius magnetic rings integrated into a compact, high-performance encoder.
This development has involved:
- A custom product design tailored to the client’s embedded electronics
- An optimized manufacturing process to ensure enhanced mechanical and magnetic precision
The first ring controls angular position, while the second measures speed—critical for motor control. Together, they form a reliable, compact magnetic encoder.
Proven Performance in Extreme Conditions
Hutchinson’s solution stands out for its:
- Ultra-high precision: absolute angular measurement of ±0.02°, validated under extreme conditions
- Compact integration: seamlessly fits into existing electronic architectures
- Reliable repeatability: consistent performance even in constrained environments
- Easy implementation: rings adapt to existing setups, simplifying final assembly
- Technical partnership: close collaboration throughout the development process
A Ready-to-Use Sensor-Actuator System
This breakthrough enables our customers to integrate a fully operational sensor-actuator system straight out of the box, without calibration or adjustment. It simplifies implementation, reduces development costs and eliminates the need for additional components.
