Multi-bus Data Logger
Multi-bus Data Logger

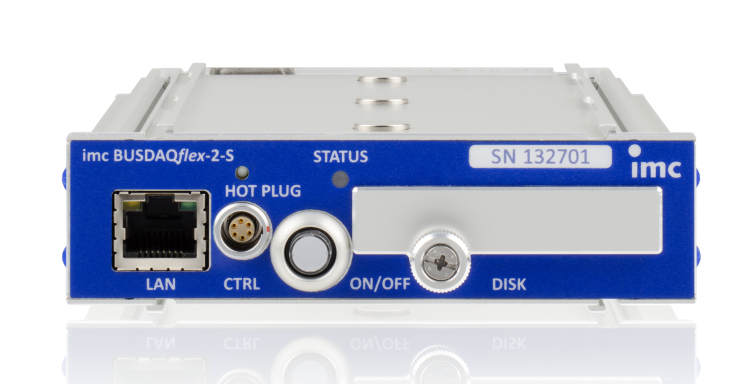

With the new imc BUSDAQflex data logger imc Meßsysteme is offering a new multi-bus logger that can directly acquire data from all relevant vehicle and machine buses. Modern networking possibilities via WLAN/UMTS allow a wireless connection: whether to a tablet or directly to the Internet of Things (IoT). In addition, the system can be expanded by clicking on analog inputs from the imc CANSASflex measurement module family. It can also synchronously record analog sensor signals. Possible application areas include monitoring of remote industrial facilities, testing on mobile equipment or fleet testing on prototype vehicles with direct cloud connection.

In the standard, basic configuration, imc BUSDAQflex has two CAN nodes. Depending on the housing size, this can be extended to up to 12 nodes for different field and vehicle buses. In addition to the CAN interface, the devices can be individually equipped with interfaces to LIN, FlexRay, ARINC, MVB, EtherCAT, XCPoE or CAN FD. Besides the recording of raw data streams and protocol channels, live decoding of individual channels as well as complex protocols such as CCP, KWP2000, XCP, OBD2, UDS, DiagOnCan, TP2.0 and GMLAN are also supported. In addition, the data logger offers the option to connect any other protocols and buses via the programmable APPMOD interface with Ethernet or RS232 interface.

A complete measurement system in just one click

The new data logger is perfectly complemented by the imc CANSASflex series measurement modules. Thanks to the click-mechanism, modules can be directly attached to the logger without tools or cabling. A wide range of module types cover all typical signals and sensors – from universal measurement amplifiers up to special measurement modules for complex tasks such as highly-isolated measurements on hybrid and electric vehicles. In a very short time, a field bus logger can be transformed into a complete measurement system that can synchronously record and store all data.

Integrated real-time functionality

With the optional integrated real-time platform imc Online FAMOS, the data logger becomes a smart gateway for incoming measurement data. Data streams coming from each channel are decoded and completely scaled live from bus protocols and can already be processed, analyzed and reduced in real-time on the device. Thus, the system is able to deliver data as compressed and meaningful results. These are then available for automated decisions directly on site and can also be transferred to higher-level systems or the Internet of Things (IoT). In addition to a connection via Ethernet, imc BUSDAQflex can also be connected wirelessly via an optionally integrated WLAN adapter or a mobile radio modem. This allows remote access to the device and the data and enables automated synchronization with the imc cloud. The system supports standardized protocols such as UDP, FTP or HTTPS to connect to existing IoT platforms.


Posted on April 26, 2017 - (481 views)
