Protection Monitor
Protection Monitor

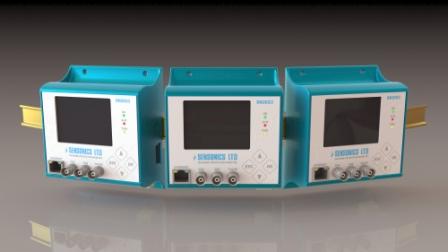

Condition monitoring specialist SENSONICS has developed their DN26 G3 protection monitor. The new DN26 G3 unit provides compact and cost-effective protection for smaller plant and equipment such as, pumps, fans, motors, centrifuges, turbines, or any item of small to medium industrial machinery. The high-performance Din rail mountable unit is capable of monitoring two channels of bearing vibration, shaft vibration, or shaft position and offers fully programmable signal conditioning with a range of measurement algorithms and sensor options. In addition the DN26 G3 offers a dedicated speed monitor channel which can also be utilised as a phase reference for harmonic analysis of the vibration signals. As a universal module (single hardware platform) the unit is field upgradable and can be programmed for any of the measurement options detailed above. It is available with mains or +24V power supply options. The sensor interface is programmable to accept IEPE type accelerometers / velometers, proximity probes (API 670 standard), and active / passive speed probes. All sensor signals are available via a buffered interface which provides the option of further detailed analysis if required. Three alarm relays are available as standard (expandable to up to seven relays via a digital interface), one dedicated to indicate module and sensor integrity, the other two relays are fully programmable across the alarm criteria selected. All three input channels measured values are available via a 4-20mA interface. The unit is available with Ethernet communications as standard, permitting configuration either locally or remotely through the inbuilt web server and offering Modbus over TCPIP for connecting measured data to other plant wide systems. The DN26-G3 features a built-in intuitive colour LCD display and menu drive facility providing various display modes including FFT analysis of the dynamic channels and an alarm historian with real time logging capability.

Posted on January 30, 2014 - (957 views)
by
Sensonics
Northbridge Rd
HP1 1EF Berkhamsted - United Kingdom
+44-1442-876833
+44-1442-876477
View full company profile
