Single Board Computers

  Enquire / contact me

for industrial applications

Automation

Single Board Computers
Single Board Computers

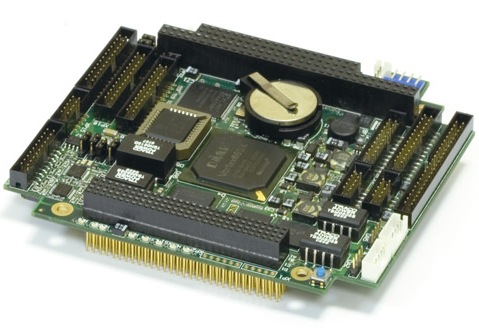

Fastwel's CPC306 is designed for applications requiring industrial controller with low power consumption and compact size but capable to run in industrial environments. It is based on DM&P Vortex86DX (600 MHz) processor, with 256 MB DDR2 SDRAM, integrated Ethernet channels, four COM ports and four USB 2.0 ports. With all components soldered on board, the PC withstands vibration up to 10g, shock up to 100g and operates within industrial temperature range: -40C…+85C. The model CPC307 is designed for applications requiring high-performance low-power industrial controller with CAN interface. Based on DM&P Vortex86DX (600/800 MHz) processor the module bears 256 MB soldered DDR2 memory and wide range of input/output interfaces. Having two isolated CAN ports onboard along with a wide set of popular industrial interfaces, such as RS-232, RS-485, RS-422, Fast Ethernet, the PC offers integrated functionality which is usually achieved by using several products from different manufactures. CPC307 withstands vibration up to 10g, shock up to 100g and operates in industrial temperature range: -40C …+85C.

Posted on August 18, 2010 - (49195 views)
Fastwel Ltd
108 Profsoyuznaya Street
117437 Moscow - Russia
+7-495-2321681
+7-495-2321654
View full company profile
