TFT Display

  Enquire / contact me

for professional imaging applications

Electronics & Electricity

TFT Display
TFT Display

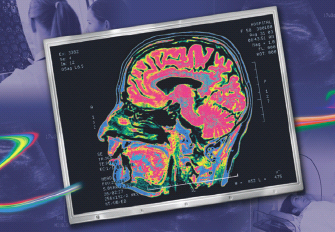

The 21.3inch 1.9MegaPixel UXGA TFT display module implements the latest evolution of Hitachi’s In-Plane-Switching technology, IPS-Pro, which provides a stable colour image from any viewing angle, excellent colour saturation and a very high contrast ratio. When viewed from an acute angle, a conventional TFT display will exhibit a loss of brightness and display image colours become inverted. It features a resolution of 1,600x1,200 pixels, a contrast ratio of 900:1 and brightness of 300cd/m². The 2-channel LVDS input signal interface enables up to 16.7M colours to be displayed. The new display module has outline dimensions of 460.6x362.0x25.0mm (wxhxd) and weighs in at 3,450g.

Posted on September 1, 2009 - (158 views)
Hitachi Europe Ltd
Aspinall Way Middlebrook Business Park
BL6 6JH Horwich Bolton - United Kingdom
