- 40 Watt converter in a 1”×1” metal package
- Cost efficient design
- Wide 4:1 input voltage range: 9–36 and 18–75 VDC
- Operating temperature range –40 to +65 °C without derating
- 1500 VDC I/O-isolation
- Protection against overload, overvoltage and short circuit
- Remote On/Off and Trim function
- Optional heatsink for increased temperature capabilities
- 3-year product warranty

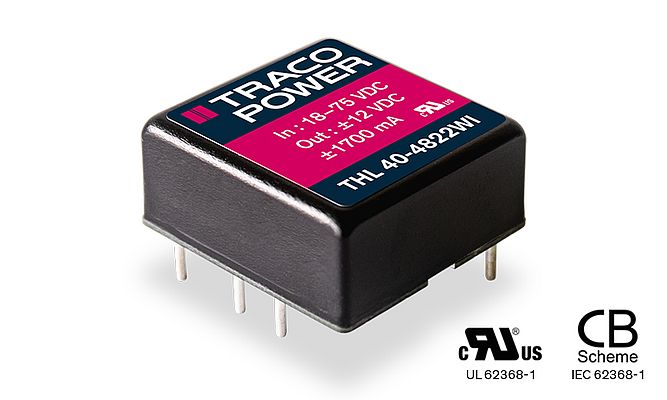

The THL 40WI series extends Traco Power’s existing DC/DC converter portfolio with 40 Watt, 1” × 1” package converters. With the focus on combining cost efficiency and quality this isolated high performance DC/DC converter series is suitable for many different applications.
The series comes in an encapsulated, shielded 1” × 1” × 0.43” metal package and offers integrated remote on/off and trim functions. High efficiency up to 93% enables the converter to operate from –40°C to +65°C without derating. All models have a wide 4:1 input voltage range and precisely regulated, isolated outputs.
The series meets the latest IT safety certifications (UL 62368-1) and is suitable for uses in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where cost efficiency and quality are critical factors.
