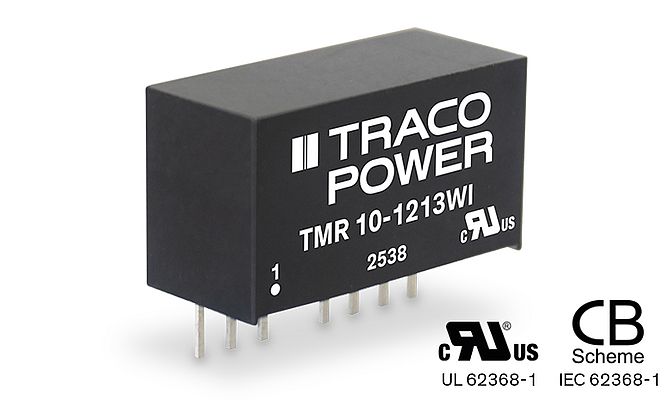

The Traco Electronic TMR 10WI series consists of isolated DC/DC converters designed for versatility, offering a wide input range from 4.5 VDC to 75 VDC (4.5–18, 9–36 and 18–75 VDC). Thanks to their high efficiency of up to 89%, these converters achieve a compact SIP-8 form factor, without compromising thermal performance.
High temperature range and altitude rating
Each unit is equipped with comprehensive protection features, including short-circuit protection, overcurrent limitation, undervoltage lockout, and remote on/off control. Certified to IEC/EN/UL 62368-1 standards, the series supports an operating temperature range of -40°C to +70°C and is rated for altitudes up to 5000 meters. Housed in a robust plastic case, the TMR 10WI series is available in both single and dual output configurations, making it a reliable choice for a wide variety of industrial applications.
