Wireless IP Mesh Solution

  Enquiry / contact me

Designed for long range and low power applications

Industry 4.0

Radiocrafts AS RIIM System
Radiocrafts AS RIIM System

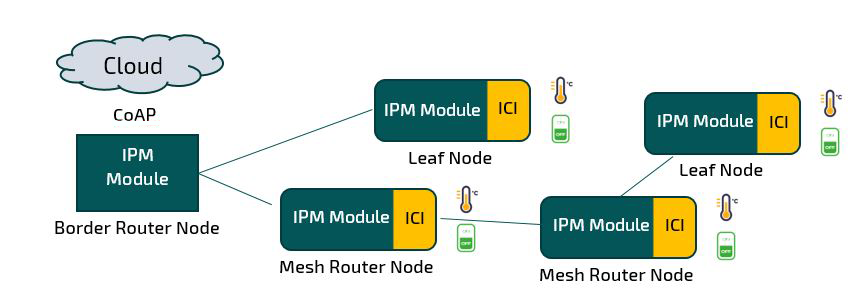

Engineered for long range and low power application such as IoT access, RIIM (Radiocrafts Industrial IP Mesh) is a 6LoWPAN sub-GHz mesh network created by Radiocrafts AS. Based on fully integrated RF modules, it is a lightweight version of IPv6 enabling the user to access each sensor and controller from the internet using IP addressing. This solution, also called ICI (Intelligent C-programmable I/O), enables the user to create complex applications in less than 100 lines of C-code.


A novel solution to create complex applications managing and interfacing sensors and actuators


The radio protocol uses IEEE 802.15.4 g/e delivering bidirectional communications with short transmission pulses for dense networks. Moreover, RIIM can support several hundred nodes in a network, working up to 20 km range with an 868 MHz or a 915 MHz frequency. It can have an Ethernet access via the Radiocrafts border router and is also Cloud compatible through the CBOR protocol.

Posted on April 15, 2019 - (246 views)
Radiocrafts AS
Sandakerveien 64
0484 Oslo - Norway
+47-970-86676
+47-22-712915
View full company profile
