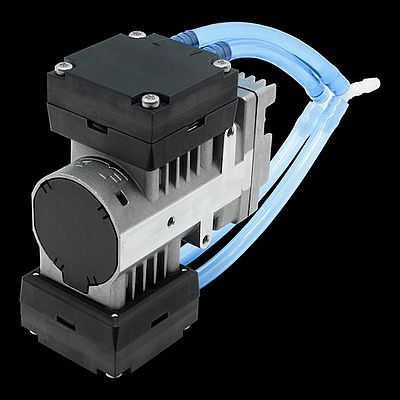

A decade is not long enough: KNF proves what long-term reliability looks like. With a verified lifetime test result of 100,000 operating hours under defined operating conditions, the NMP 850.1.2 sets a new benchmark in diaphragm pump lifetime. This milestone reflects engineering excellence rooted in reliability-driven product development. A rigorous testing philosophy ensures every product meets the highest standards. The result is a pump that enables OEMs to build safer, more efficient, and more durable systems.
Exceptional durability demonstrated
Reaching 100,000 hours of uninterrupted performance is a remarkable achievement for micro diaphragm gas pumps. It represents more than 11 years of continuous operation in a controlled environment, exceeding the demands of most real-world applications. This milestone highlights KNF’s engineering expertise and the reliability built into every pump. “This achievement is not an isolated result, but a reflection of the high quality and engineering standards we apply to every product” Fabian Hofstetter, Head of Product Management at KNF Micro AG, said.
Testing reliability: A closer look at the 100,000-hour lifetime test

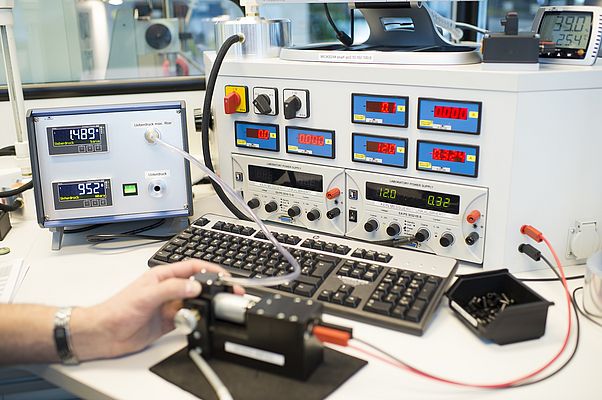

KNF routinely performs long‑term diaphragm pump tests under demanding conditions to understand real‑world reliability and provide customers with trustworthy lifetime information. The goal of this lifetime test was simple: to determine how long the NMP 850.1.2 diaphragm gas pump remains functional at a specific operating point. Two sets of five pumps each were installed at a KNF testing facility and operated continuously under intense laboratory conditions.
To create a demanding environment, the pumps were exposed to:
- 40°C ambient temperature, the highest permissible value for this pump type,
- 40-60% humidity,
- 0.5 bar overpressure,
- Vibration from the other pumps mounted in the test setup.
Despite these elevated stresses, the pumps continued to run reliably without any maintenance or part replacements, even after surpassing 100,000 hours. This result provides valuable insight into long-term durability under specific operating conditions.
Long-lasting performance that minimizes downtime
Robust design and outstanding durability significantly reduce the risk of unexpected downtime, especially in industries where continuous availability is essential. This includes:
- Medical devices,
- Portable and stationary emission measurement,
- Analytical and laboratory instruments,
- Safety-critical systems such as gas detection.
A pump designed for long-term operation can support stable device performance, lowers maintenance needs, and helps customers reduce total cost of ownership. This proven longevity gives OEMs and system integrators greater confidence when installing KNF pumps into their applications.
Quality enhances application safety and reliability
Results like these do not happen by chance. They are rooted in KNF’s engineering-driven product development approach, where pumps are designed for durability and long-term stability from the outset and then thoroughly validated through systematic testing. All pumps undergo detailed technical inspection as part of serial production to ensure compliance with relevant specifications and directives. This inspection is independent of development and lifetime testing activities. Additionally, every KNF pump is individually tested before delivery, supported by pre-tested single components that ensure efficient processing even for customized solutions.
The testing processes are designed to identify and eliminate potential risks during development and throughout production. This leads to predictable pump behavior and stable performance in the field. For customers, this means enhanced safety, consistent quality, and long-term confidence in their applications.
