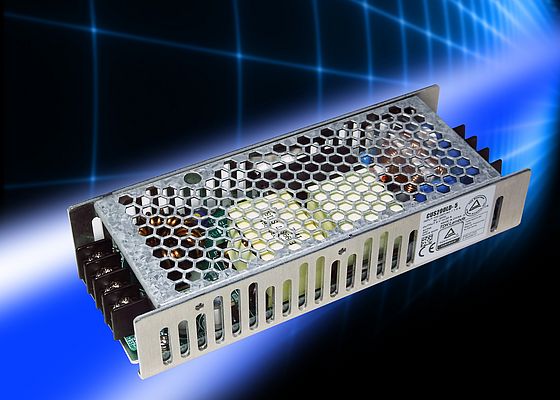

The TDK-Lambda brand CUS200LD by TDK Corporation (TSE 6762) is an AC-DC power supply engineered for LED signage applications as industrial, broadcast, test, measurement and communication equipment.
Up to 206W peak power capability
Features: Rated at up to 120W with convection cooling and 150W when mounted on an aluminium baseplate for conduction cooling. Initially being launched with 5V, 7.5V, 12V, 15V, 24V and 48V outputs, the CUS200LD accepts from 85 to 265Vac input. The CUS200LD is packaged in a compact low profile enclosure measuring 160 x 60 x 31mm (L x W x H). The unit will start up at -40°C and can operate in ambient temperatures from -20 to +70°C, derating from +45°C (conduction cooling) to 40% load at 70°C.
Safety certifications
Safety certification is compliant with the IEC/EN/UL 60950-1 standards with CE marking for Low Voltage and RoHS2 Directives. The power supplies comply with EN 55011-B and EN 55032-B conducted and radiated emissions, and meet the EN 61000-3-2 harmonics and IEC 61000-4 immunity standards.
