Circular Connector

  Enquiry / contact me

With 10 pin layout

Electronics & Electricity

Circular Connector
Circular Connector

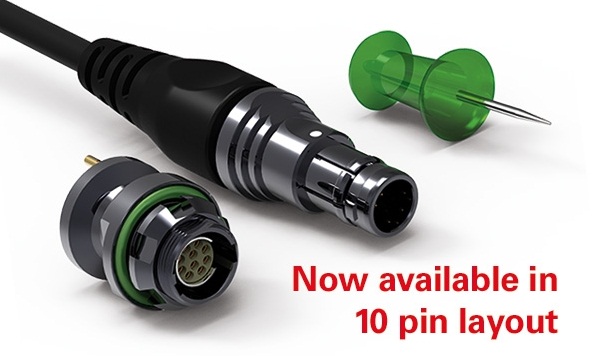

With its new 10 pin layout added to the Fischer UltiMate Series 07, Fischer Connectors completes this rugged product line for harsh environments. This push-pull circular connector is now available in a large range of sizes and configurations suitable for all your applications. This high density version is a small, miniaturized connector containing ten contacts within plug and receptacle diameters starting at 12mm only. This way, less space is necessary to implement a connecting solution, allowing designers to create smaller, lighter devices with more functionalities. With this additional configuration, the UltiMate Series of rugged connectors is now available in five sizes (07, 08, 11, 13 and 18) and in configurations from 2 to 42 pins. The series is sealed IP68/69 mated and unmated and has a high corrosion resistance of 1,000 hours. Combined with the 360° EMC shielding, the guaranteed 10,000 mating cycles and an operating temperature from -55°C to +135°C, the connector is the right choice for extreme environment applications as this connecting solution requires less maintenance, is cost effective and slow aging.

Posted on March 25, 2014 - (702 views)
Fischer Connectors Holding SA
Chemin du Glapin 20
1162 Saint-Prex - Switzerland
+41-21 8009595
+41-21 8003924
View full company profile
Description

Fischer Connectors is a leading company in the development of high performance push-pull connector and cable solutions. Known for their reliability and precision, our products are used in field requiring faultless quality.
