Climeon Ocean Next Generation of Heat Power

  Enquire / contact me

The machinery features higher efficiency, increased serviceability and more compact design

Climeon Ocean Next Generation of Heat Power
Climeon Ocean Next Generation of Heat Power

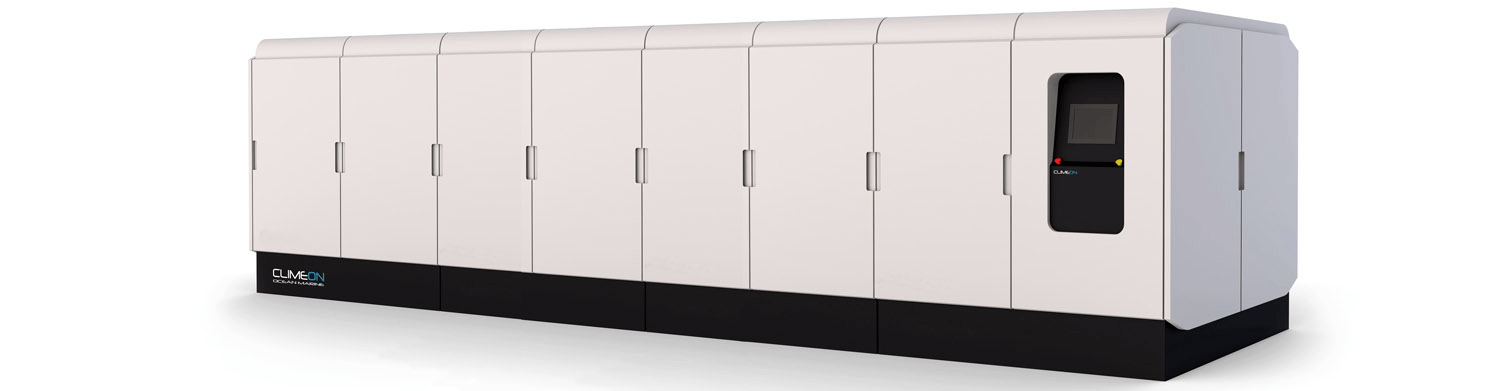

Based on the successful Climeon Ocean 100, these products include more than fifty improvements, including higher efficiency, increase serviceability and more compact design. With the enhancements in the product line the manufacturer can now deliver even more value for customers and contribute even more in global CO2 reductions. Climeon Ocean are designed for land-based "heat power" applications such as solar, geothermal, industrial waste-heat and power plant installations. Solutions includes five different models: Ocean 150, delivering up to 150 kW net electricity; Ocean 300, delivering up to 300 kW net electricity; Ocean 450, delivering up to 450 kW net electricity; Ocean 600, delivering up to 600 kW net electricity; Ocean1000, delivering up to 1 MW net electricity.

Ocean are designed for sea-based "heat power", primarily for installations on ships. Systems are specifically designed to meet the high requirements of the marine markets, including designed to absorb micro-vibrations caused by ship engines; security classification exceeding requirement set by insurance companies, marine classified components. Solutions include five different models: Ocean 150M, delivering up to 150 kW net electricity; Ocean 300M, delivering up to 300 kW net electricity; Ocean 450M, delivering up to 450 kW net electricity; Ocean 600M, delivering up to 600 kW net electricity; Ocean 1000M, delivering up to 1 MW net electricity. All models deliver at best case up to 14% efficiency, or >10% at 90C/20C temperatures (more than half of theoretical max). Shipments will start during 2016.

Posted on November 17, 2015 - (640 views)
