High-Performance UV-Visible Spectrophotometer for Use with Flow Chemistry Systems

  Enquiry / contact me

Flow-UV™ is a full-spectrum UV-Visible spectrophotometer particularly adapted to continuous flow applications but also to batch analysis

Test & Measurement

High-Performance UV-Visible Spectrophotometer for Use with Flow Chemistry Systems
High-Performance UV-Visible Spectrophotometer for Use with Flow Chemistry Systems
High-Performance UV-Visible Spectrophotometer for Use with Flow Chemistry Systems
High-Performance UV-Visible Spectrophotometer for Use with Flow Chemistry Systems

The standard Flow UVTM cell has a path length of 1 mm, can withstand pressures up to 35 bar at room temperature and can be placed anywhere in the flow path. Other path lengths are available, and the instrument is suitable for use with a wide range of Z-configuration flow cells that may be more adapted to high-throughput process applications.

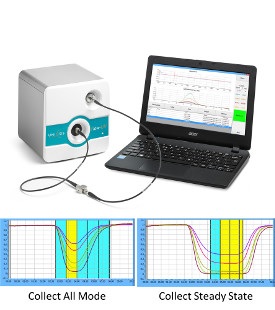

Powerful control software to automate reaction product collection

Dispersion and steady state may be monitored at 5 user selected wavelengths in real time to assist with product collection and quality control. The Uniqsis FlowControl II system control software allows to automate reaction product collection in either 'Collect All', 'Steady State' or 'Balanced' collection modes. It enables the recall of recorded methods and automatically saves a background spectrum at the beginning of each experiment.

Posted on June 1, 2021 - (277 views)
Uniqsis Ltd
29 Station Road
CB7 5RJ Shepreth - United Kingdom
+44-845-864-7747
View full company profile
