High-power Servo Drive

  Enquiry / contact me

Delivering 10.000w of qualitative power for the most demanding applications

Motors & Drives

High-power Servo Drive
High-power Servo Drive

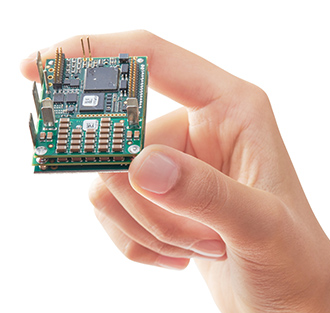

Elmo Motion has doubled the power of its ultra-small, already powerful servo drive Gold Twitter to suit the most demanding applications in the era of Industry 4.0. With a weight of only 33 grams and continuous currents of 160A (80V) and 140A (100V), the new Double Gold Twitter delivers over 10,000w of qualitative power, proving a great fit for applications that require a reduced footprint and high power, such as large robotic vehicles, antennas and tracking systems, high power machine tooling, large printer rolls and more.

Highly efficient with low interference

The Double Gold Twitter is among the smallest STO-certified (IEC 61800-5-2, SIL-3) servo drives on the market. It features Elmo’s proprietary and innovative Fast and Soft Power Switching Technology (FASST), which ensures optimal power-device switching and delivers over 99-percent efficiency and negligible electro-magnetic interference (EMI).This extreme efficiency allows for its minature size, meaning that the Double Gold Twitter can be placed on a moving load, on the motor or inside the motor, helping engineers save space, improve machine performance, reduce cables and eliminate electrical cabinets, while delivering unprecedented power.


Posted on February 8, 2018 - (13662 views)
