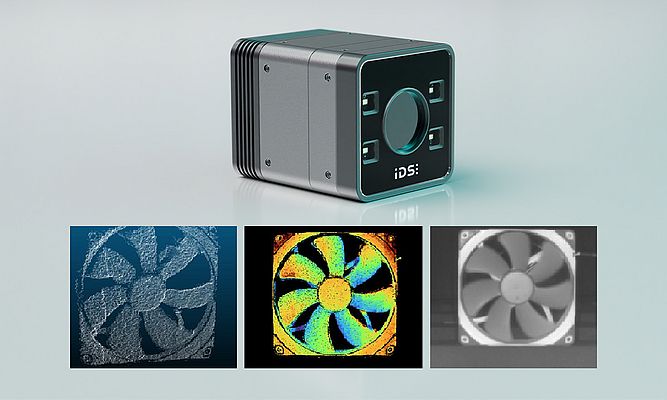

IDS Imaging Development Systems is expanding its 3D portfolio with Nion, an industrial ToF camera featuring 1.2-megapixel resolution and integrated depth processing. It provides high-resolution and temporally stable depth information at 30 fps, even during rapid movements and in changing lighting conditions. This makes it suitable for applications such as logistics, automation and robotics, where precise 3D data is required at real-world process speeds.
The Nion captures moving objects with virtually no blurring. Its high resistance to stray light ensures reproducible measurement results both indoors and outdoors. The measuring range of 0.3 to 7.5 metres covers typical industrial scenarios. The robust IP67-rated housing allows it to be used in more demanding environments. Power over Ethernet (PoE) reduces installation effort and cabling.
Lower noise and improved stability
Compared to standard ToF cameras on the market, the onsemi AR0130 depth sensor offers higher resolution, lower noise, more stable results in ambient light and improved motion stability. This enables the Nion to achieve high depth accuracy even when objects are moving quickly and under variable lighting conditions. Thanks to its compact design, high measurement quality and excellent value for money, the Nion offers a straightforward introduction to 3D image processing. Companies can integrate the camera flexibly into existing systems and benefit from a cost-effective solution for reliable depth data. In many cases, existing 2D processes can be retained and supplemented with depth data for decision-making.
