IPC Current Measurement Modules
IPC Current Measurement Modules

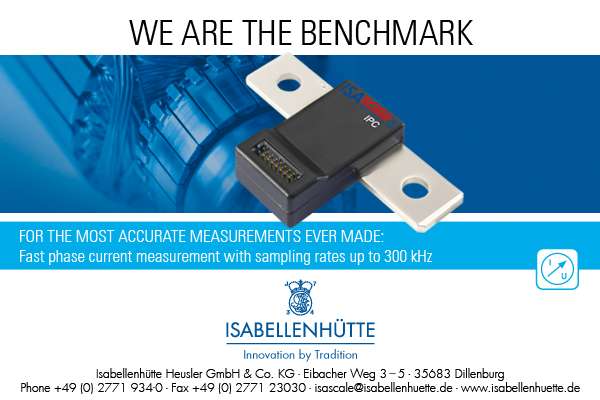

Isabellenhütte's IPC series of current measurement modules allows a fast phase current measurement on shunt basis and was designed to control electric high-performance motion control units of all types. The data acquisition runs at sampling rates from 10 to 300 kHz. A programmable sampling delay time triggered is supported. The modules also supply a fast over current signal (response time < 3 µsec).

It is possible to measure currents from 20 A up to several thousand amperes. All IPC modules are galvanically isolated and offer highly dynamic and extremely accurate measurement (resolution 12 - 16 bit).

Further advantages are: reduced power loss, low offset and drift as well as an extremely low noise level.
