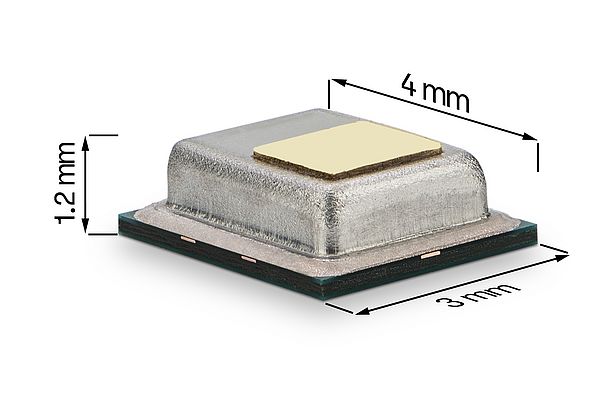

The Sensirion STCC4 is one of the world's smallest sensors for direct CO2 measurement used to monitor indoor air quality. With its form factor of 4 x 3 x 1.2 mm³ and low power consumption, the sensor is a welcome newcomer in the CO sensor market. Utilizing the latest technological advancements in thermal conductivity sensing, the STCC4 provides the accuracy needed for indoor air quality applications. The sensor accuracy offered is ±100 ppm + 10% and the average current consumption possibility below 100 µA.
Prepared for high volume applications
Both accurate signal compensation and monitoring of relevant indoor environmental parameters are achieved when STCC4 is combined with Sensirion’s industry-leading temperature and humidity sensors. Engineered and manufactured in Switzerland, it has been optimized for easy integration into high volume applications through its SMD design and tape & reel packaging. The STCC4 is suitable for a wide range of applications, including indoor air quality monitors, smart thermostats, air conditioners and much more.
The SEK-STCC4 evaluation kit jumpstarts the sensor assessment process by offering users a straightforward testing approach. Sensirion enables simple sensor evaluation through provided hardware, software testing platform and driver support.
The STCC4 and SEK-STCC4 are now available worldwide through Sensirion’s distribution network.
