NSF Certified Turbine Flow Meters

  Enquiry / contact me

For the food & beverage sector

Test & Measurement

NSF Certified Turbine Flow Meters
NSF Certified Turbine Flow Meters
NSF Certified Turbine Flow Meters
NSF Certified Turbine Flow Meters

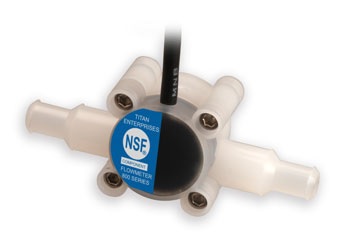

Titan Enterprises provides the 800 series of flowmeters and beverage meters. They incorporate the NSF certification for use within food and beverage production facilities. The certification under NSF169 is maintained as equipment for food products for their 800 Series turbine flowmeters and Beverage meters. The 800 series turbine flow meter is designed to give reliable, high performance over 6 flow ranges from 0.05 to 15 L/min. Incorporating only non-metallic wetted components makes the 800-seies flowmeter a suitable choice for the metering of food and beverage materials.

Based upon a unique Pelton wheel design

At the heart of each beverage flowmeter is a precision Pelton wheel turbine that rotates freely on robust sapphire bearings and contains over-molded magnets that are detected through the chamber wall by a Hall effect detector. The output from Titan's 800-series and beverage flow meters is a stream of NPN pulses that are directly interfaced with either PLCs or an electronic display. This combination of materials and technology ensures a long-life product with reliable operation throughout.

Posted on October 27, 2020 - (421 views)
Titan Enterprises Ltd
5a Coldharbour Business Park
DT9 4JW Sherborne - United Kingdom
+44-1935-812790
+44-1935-812890
