Panel Mount Connectors

  Enquire / contact me

available with 3, 4 and 6 poles

Electronics & Electricity

Panel Mount Connectors
Panel Mount Connectors

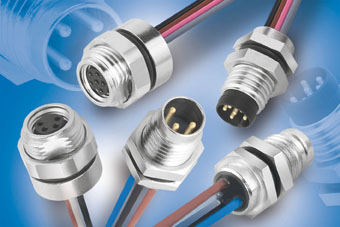

The M8 front fastened panel mount connectors of the 718 series from Franz Binder are available as a modular system with 3, 4 and 6 poles. The four available diecasted zinc housings allow rear and front panel mounting of connectors and sockets. The male and female contacts are crimped to single stranded wires. There are dip-solder versions available of these panel mount connectors as straight and angled connectors. Thanks to a shielding sheet they can be mounted onto printed circuit boards. When mated and locked these connectors fulfill IP67.

Posted on October 9, 2010 - (17848 views)
Franz Binder GmbH & Co. elektrische Bauelemente KG
Rötelstraße 27
74172 Neckarsulm - Germany
+49-7132-3250
+49-7132-325150
