SLS Thermal Imaging Camera A6750sc

  Enquiry / contact me

It offers flexibility in configuration for optimally detecting high-speed thermal events

Test & Measurement

Flir SLS Thermal Imaging Camera A6750sc
Flir SLS Thermal Imaging Camera A6750sc

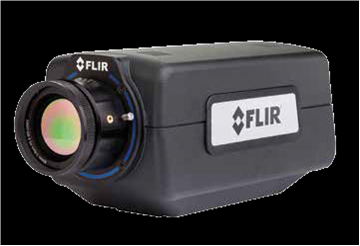

FLIR Systems presents the new SLS thermal imaging camera A6750sc that offers the high speed, high resolution, ease of use and flexibility in configuration for optimally detecting high-speed thermal events and fast-moving targets.

The FLIR A6750sc SLS incorporates a high performance cooled Strained Layer Superlattice (SLS) detector that operates in the 7.5 to 9.5 micron waveband producing crisp LWIR thermal imagery at 640x512 pixel resolution.

Working in snapshot mode, the FLIR A6750sc SLS is able to capture all pixels from a target simultaneously in less than 190 microseconds for room temperature scenes. This is particularly important when monitoring fast moving objects, such as in impact testing experiments, where an uncooled thermal imaging camera would suffer from image blur. The camera supports image frame rates up to 4.1k frames per second when operating in windowing mode.

Offering data capture over a wide temperature range up to 2000 °C the FLIR A6750sc SLS is designed to be readily synchronized with other instruments and events. Custom cold filtering options for specific spectral detection and measurement are available.

Using a standard GigE Vision® interface to transmit full dynamic range digital video, and GenICam for camera control, the FLIR A6750sc SLS is a true "plug and play" thermal imaging camera. Additional interfaces include a BNC analog video output. The Gigabit Ethernet and analog video are simultaneously active yet independently controlled allowing greater flexibility for recording and display purposes.

Using FLIR's ResearchIR software, researchers and scientists can easily monitor, acquire, analyze, and share data. In addition, extender rings for zoomed-in fields of view make the camera perfect for imaging small thermal targets, and close-up lenses can detect spot sizes down to 15um per pixel - well beyond the capabilities that lower performance IR cameras are able to achieve.

Posted on August 20, 2015 - (2091 views)
FLIR SYSTEMS
Kings Hill Avenue 2 Kings Hill
ME19 4AQ West Malling - United Kingdom
+44-1732-220011
+44-1732-220014
