Ultra-compact DC-DC Converters

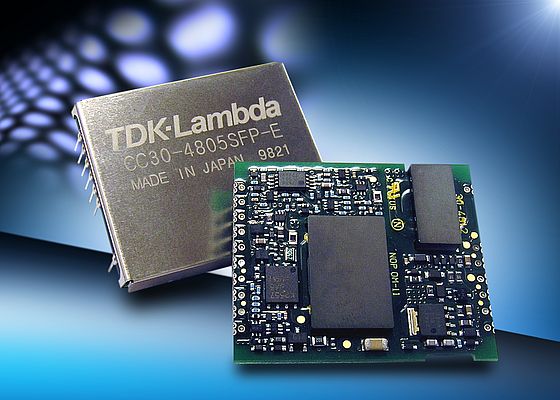

TDK-Lambda has extended its range of DC-DC converters with 15W and 30W versions. Each CC-E power range comprises 32 models and is available in both surface mount and through-hole packages. The used low-loss ferrite core material ensures high efficiency of operation resulting in an extremely compact size with an ultra low profile. For instance, the 30W CC30-4805SHF-E model measures just 37.9 x 31.6 x 6.5mm, achieves an efficiency of 92.5% and a power density of 63.2W/in3. These DC-DC converters are approved to a wide range of safety standards, including UL/CSA/EN60950-1 and all models carry the CE mark. Operating temperatures range from -40 to +85°C. The use of tantalum and electrolytic capacitors has been eliminated. These converters come with a 5-year warranty.
