Bronkhorst has introduced a unique series of low-flow mass flow meters and controllers based on the Coriolis measuring principle, providing high accuracy, fast response and fluid independence. With the development of the Bronkhorst® ES-FLOW™ Flow Meter a new Ultrasonic Wave Technology has been added to our family of flow meters.

Main features and applications

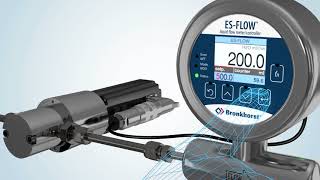

The ES-FLOW™ Ultrasonic Flow Meter from Bronkhorst was designed to measure tiny volume flows from 4 up to 1500 ml/min with high precision, high linearity and low pressure drop, using ultrasound in a small-bore tube. Liquids can be measured independent of fluid density, temperature and viscosity. Thanks to the combination of a straight sensor tube with zero dead volume the flow meter is self-draining. The orbital TIG-welding allows hygienic connections so the instrument can be used for hygienic applications. For non-hygienic applications, the flow meter can also be equipped with compression type fittings. Wetted parts are made of stainless steel, the exterior design is rated to IP67.

User interface

The user interface is a capacitive touchscreen with a TFT display to operate and readout the instrument. The on-board PID controller can be used to drive a control valve or pump, enabling users to establish a complete, compact control loop.

Fields of application

Typical applications for the new low-flow liquid flow meters and controllers can be found in Food, Beverage & Pharma (e.g. additives, sterilisation), Medical and Chemical (e.g. catalysts, reagents) and many other markets which require precision fluid handling e.g. fuel consumption measurement and dosing of colorants or lubricants in many industries.

Please visit us at Hannover Messe : Hall 11 / Stand A50
