Hall Switches
Hall Switches

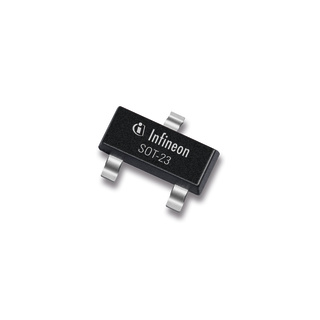

The new family of Infineon Hall Switches include latches and unipolar switches. Designed in a new technology, the family offers high voltage capabilities with very small current consumption. The products can be operated from unregulated power supplies which offers customers freedom of design for their system. The superior peak overvoltage capability of up to 42V makes additional resistors redundant. This allows the reduction of external, passive protection components which reduces system PCB space, design and inspection cost. With the typical current consumption of 1.6mA, the family is suited for upcoming energy sensitive systems. Targeted for automotive market with high quality requirements, strong ESD functionality and high stability of magnetic thresholds over temperature and life time have been realized. Offered in the very small SOT23 package, the slender footprint saves additional space and delivers an optimized air gap performance. The new family in SOT23 package is halogen free, RoHscompliant and AEC Q100 certified.

Posted on June 27, 2013 - (634 views)
