Hydraulic Gantry SL400

For lifting and positioning heavy loads

  • Hydraulic Gantry SL400
    Hydraulic Gantry SL400

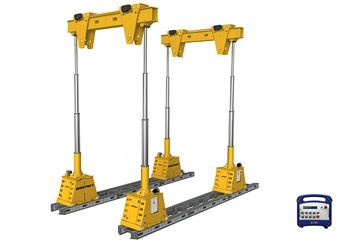

The Enerpac SL400 hydraulic gantry is a safe and efficient solution for lifting and positioning heavy loads. With a lifting capacity of 4000 kN (450 tons) and a maximum lift height of 9.140 mm (30 ft) the SL 400 is a cost effective alternative to a traditional crane for numerous applications. Each tower is equipped with a three-stage telescopic cylinder. All Enerpac gantries comply to ASMEB30.1-2015 safety standard and are witness tested by an independent third party. It is designed and tested to meet ASME B30.1-2015 safety standards.

Each gantry is tested to 120% of capacity at full extension and witness tested by Lloyds. It fits with CE compliant design. The innovation concerns: self contained hydraulics: enables an easier setup and eliminates trip hazards associated with hydraulic hoses; wireless control unit: easy synchronized control and monitoring of lifting and travel operations while providing optimum visibility of the load; self propelled wheels: provides synchronized travel in a smooth continuous manner.
