LCL Filter
LCL Filter

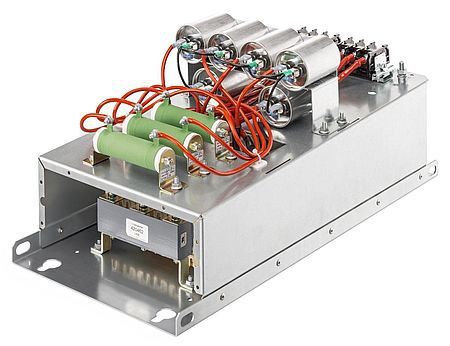

Schaffner’s FN 6840 LCL filter has been specifically designed for Active Front End (AFE) Motor Drives and Active Infeed Converter (AIC) applications. As a mandatory interface between grid and AFE or AIC-systems, it helps improve the power quality on the grid side, while simultaneously reducing ripple currents and voltage distortions. Moreover, it attenuates effectively the switching  frequency of the converter to the grid/line side.

Compact design

With a nominal operating voltage of 3 x 380…480 VAC, the FN 6840 is compactly designed and contains all necessary LCL components in one package.
It can operate in a temperature range between -25°C and +50°C and it is characterized by an insulation class EIS 200
Installation and connection are easy and intuitive.



Visit Schaffner at SPS Smart Production Solutions Hall 4, Booth 580

Posted on November 15, 2019 - (344 views)
