Light Force Switch for Pressure Applications
Light Force Switch for Pressure Applications

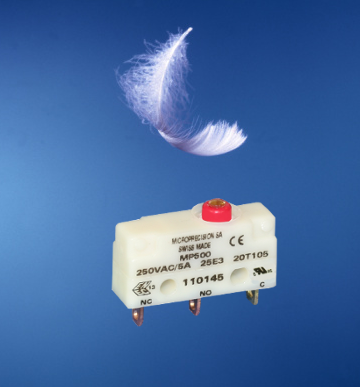

Microprecision Electronics offers a new variation of its MP500 sealed subminiature micro switch for process control applications. Compared to the standard version with an actuating force of max 2.5N, the new MP520 has a lower actuating force of max 1 N. The differential force is only about 0.2 N. The differential travel of less than 0.05mm and a fast change over time of 5 ms is another important parameter for process applications. The Series MP500 is UL61058 and EN61058 approved for a power rating of 250 AC/ 5A with an operating temperature between - 40°C and 105°C. Termination options are PCB pins, solder lugs or cable. To adapt to special applications, the actuators can be custom designed.

Posted on March 30, 2016 - (1186 views)
Microprecision Electronics SA
Route de l'Industrie 27
1896 Vouvry - Switzerland
+41-24-4814343
+41-24-4814360
