Magnetostrictive Position Sensors R-Series

  Enquire / contact me

High performance linear position measurement with a new device which has the capacity to deliver superior reliability

Sensor Technology

Magnetostrictive Position Sensors R-Series
Magnetostrictive Position Sensors R-Series

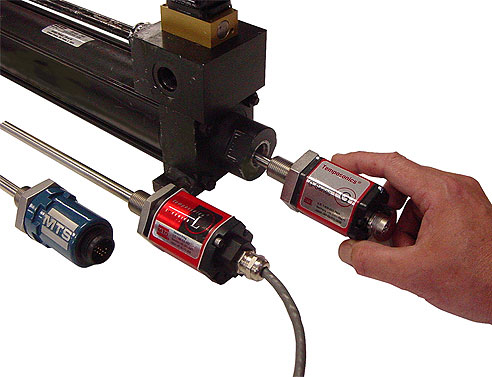

MTS Sensors has further expanded its R-Series of robust, high performance magnetostrictive position sensors with a new device which has the capacity to deliver superior reliability and industry-leading accuracy in even the most demanding work environments. Utilizing the company's proprietary Temposonics® technology, the RT4 is a linear position measurement solution that features 2 independent sensor elements - each of which has a measuring length of 50 mm to 2540 mm (2" to 100").

Targeted at use in steel processing plants, lumber mills and power generation sites, this fully redundant position sensing product employs a Synchronous Serial Interface (SSI), which means that data transfer is less susceptible to the presence of electro-magnetic interference.

In addition, the IP68-rated enclosure protects against the threat of liquid ingress. The RT4's detached electronics can be mounted up to 600 mm (23.6") away from the sensing environment allowing the electronics to be kept further from sources of potential harm. A temperature range that reaches up to 100˚C (212˚F) is supported for the sensor rod and interconnection cables.

Through MTS Sensor's ground-breaking Temposonics® magnetostrictive sensor technology, precise, non-contact position measurement data can be acquired. Temposonics® based devices can deal with the exacting mechanical stresses found in modern industrial settings without being subject to wear and tear.

Posted on April 15, 2016 - (233 views)
MTS Sensor Technologie GmbH & Co. KG
Auf dem Schüffel 9
58513 Lüdenscheid - Germany
+49-2351-95870
+49-2351-56491
View full company profile
Description

MTS is the expert in magnetostrictive sensor technology. At three sites in Germany, Japan and the USA, a staff of 355 employees are involved in the development and production of an annual volume exceeding 450,000 position and level sensors.
