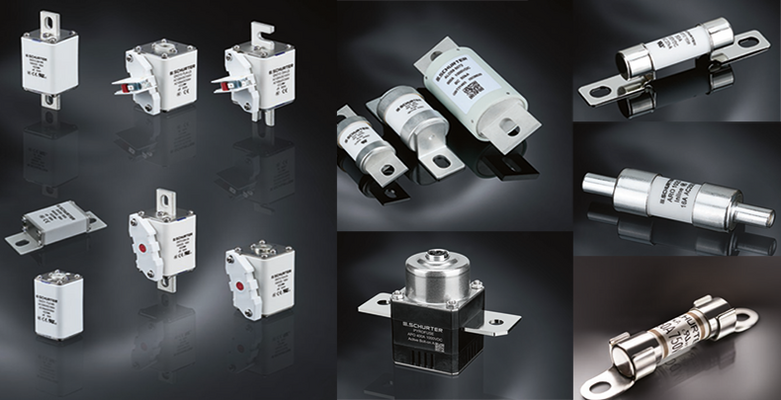

SCHURTER expands its portfolio of high-performance fuses for electric vehicles, energy storage systems, charging infrastructure, DC/DC converters, BMS and industrial power electronics applications.
The ALO series covers up to 1000 VDC and 900 A, offering high DC breaking capacity (up to 50 kA), axial or bolt-on mounting, and robust ceramic or resin housings.
The ADO series is designed for 500–1000 VDC with rated currents from 10–63 A, featuring fast-acting characteristics, high vibration resistance and versatile mounting options.
The AMO series protects up to 800 VDC / 50 A and uses a patented welding process for maximum reliability.
ARO inline fuses are compact, rated up to 250 VAC / 63 A, provide high breaking capacity and are ideal for cables and connectors.
APO pyrofuse solutions enable active, ultra-fast interruption (≤2 ms) up to 1000 VDC / 400 A for safety-critical high-voltage systems.
The EKO series provides industrial HV protection up to 1000 VDC / 1250 VAC, 50–1100 A, with DC breaking capacities up to 50 kA.
