Digital Pressure Sensors

  Enquire / contact me

With CANopen

Sensor Technology

Digital Pressure Sensors
Digital Pressure Sensors

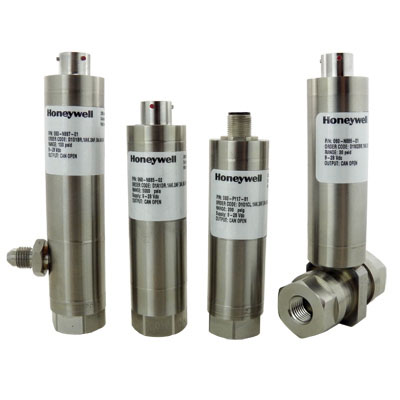

Honeywell Sensing and Control's new digital pressure sensors with CANopen, Model DPS, are rugged, all-welded, provide consistent performance in harsh environments, and can be used in a wide range of demanding applications like transportation, process control, factory automation, medical equipment systems, and aerospace test and research. The sensors are highly configurable, so customers can choose from multiple pressure types, accuracy levels, pressure ranges, pressure connections, and electrical terminations to meet specific application needs. Configurations for digital measurements are fully temperature compensated and calibrated for pressure ranges from 10 psi to 10K psi or 1 bar to 700 bar or 70kPA to 70000 kPa, with accuracy ranges of 0.25% and 0.1%, and operating and storage temperature ranges from -25 °C to 85 °C [-13 °F to 185 °F]. Built tough to withstand harsh environments, the sensors with CANopen protocol communication allows customers to connect to longer cable distances without sacrificing accuracy.

Posted on September 24, 2013 - (989 views)
by
Honeywell Sensing & Control
1985 Douglas Drive North
55422 Golden Valley - USA
+1-763-9544818
View full company profile
