Hall-Effect Sensor ICs

  Enquire / contact me

With built-in pull-up resistors

Sensor Technology

Hall-Effect Sensor ICs
Hall-Effect Sensor ICs

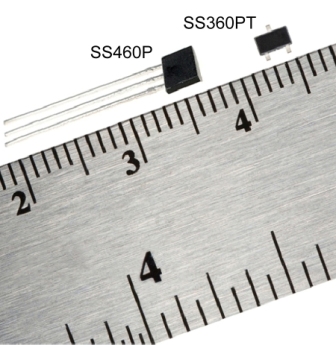

Honeywell Sensing and Control's new SS360PT and SS460P high sensitivity latching Hall-effect sensor ICs with built-in pull-up resistors are high performance yet economical sensor ICs well-suited for demanding, cost-sensitive high-volume applications, such as commuting brushless DC motors used for medical equipment and appliances as well as for flow-rate sensing, speed and RPM sensing, tachometers, counter pickups, motor and fan controls. The sensors provide reliable switching points with a high magnetic sensitivity of 30 Gauss typical, at 25 °C [77 °F], and 55 Gauss maximum over the full -40 °C to 125 °C [-40 °F to 257 °F] temperature range, allowing for the use of smaller magnets or a wider air gap. These sensor ICs do not use chopper stabilization on the Hall element, providing a cleaner output signal and a faster latch response time when compared to competitive, chopper-stabilized, high sensitivity Hall-effect bipolar latching sensor ICs. Latching magnetics make these sensors well-suited for accurate speed sensing and RPM (revolutions per minute) measurement.

Posted on January 9, 2014 - (602 views)
