Filters for Lighting Equipment

  Enquiry / contact me

Operate in single-phase and industrial applications

Electronics & Electricity

Schaffner FN 2580
Schaffner FN 2580

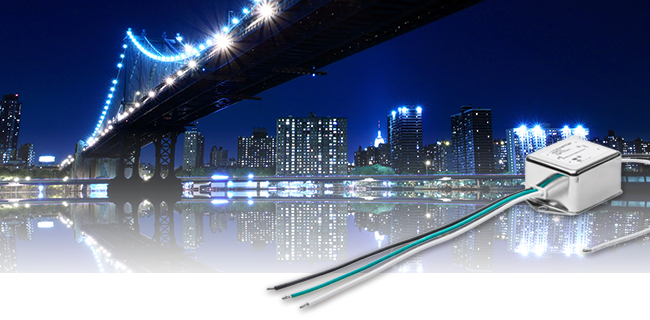

The FN 2580 power line filter family from Schaffner is made for lightning equipment. This new single-phase EMC filter has a 350 VAC rating and can be used in typical single-phase applications (120 VAC and 230 VAC). It also fits the use in industrial applications when utilizing phase to neutral voltage off three phase power, for example: 480 VAC P-P / 277 VAC P-N and 600 VAC P-P / 347VAC P-N.


Compact & application specific


The filters are engineered specifically for lighting applications with enhanced EMC performance at target frequencies along with an extended operational temperature range. REACH and RoHS compliant, they also have all the required safety approvals such as UL, CSA, ENEC and CQC.

Posted on December 17, 2019 - (171 views)
