GPS Data Logger
GPS Data Logger

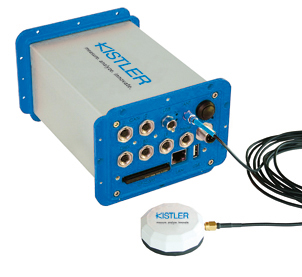

Offering full compatibility with other sensors within Kistler’s Corrsys-Datron product range, the model CDS-GPS offers an update rate of 100 Hz with GPS signal output via CANBus. With simple and quick vehicle mounting capabilities, it provides high-accuracy measurements of absolute speed, travelled distance, latitudinal and longitudinal position, height, time and date, and system status information, such as the number of satellites, signal quality, and other factors, to a high degree of accuracy. The data logger can be used within braking tests, acceleration and deceleration tests, fuel consumption assessments, tire validation, ABS brake testing, irregular brake-force balance monitoring and the optimization and fault diagnostics of other vehicle electronic control systems.  In addition, units are programmed with predefined driving maneuvers for longitudinal dynamic measurements. When coupled with appropriate sensors and instrumentation, such as wheel force transducers, sideslip angular sensors, rotational speed sensors, accelerometers and pressure transducers, from the company, the data logger may also be used for extended transversal vehicle dynamics testing.

Posted on May 16, 2012 - (681 views)
by
Kistler Instrumente AG
Eulachstrasse 22
8408 Winterthur - Switzerland
+41-52-2241111
+41-52-2241414
View full company profile
