Hygienic Levelling Feet
Hygienic Levelling Feet

LMHD hygienic levelling feet with mounting holes from Elesa provide rugged adjustable equipment mounting and facilitate reduced cleaning work – which can be up to 25% of the production time. Thus leaving more time available for production, with less use of resources such as fresh water, energy and cleaning agents, also with less waste water to process, and so lower total costs.

EHEDG guidelines

LMHD series feet are certified according to EHEDG guidelines and are therefore ideal for use in hygienic applications including not only where food is produced but in many other industrial areas, such as the pharmaceutical industry and in the manufacture of paints and dyes.

Design and features

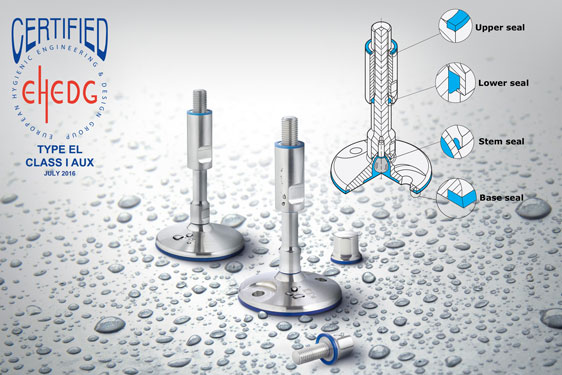

The LMHD levelling feet are designed with a bottom seal which protects the area beneath the foot plate from dirt and a sealing ring above the adjustment sleeve which enables fastening without creating a dead space. They also have a mobile foot joint with a wiping action ball seal and a high quality finish which prevents adherence of dirt and facilitates cleaning.

Standard components

The Elesa LMHD levelling feet are part of a special series of standard components that meet the requirements of the EHEDG and the 3-A Sanitary Standards manufactured with FDA and EU compliant plastics and elastomers. Their special seal design ensures reliable protection for static and adjustable parts.
