KinetiMax High Power Density Frameless Stator-Rotor Sets
KinetiMax High Power Density Frameless Stator-Rotor Sets

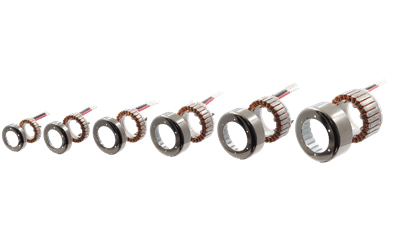

Allied Motion’s KinetiMax HPD series is available in six frame sizes and three stack-lengths each and enables you to select an optimum configuration with an exact performance fit for your application. These compact kit motors offer an ideal solution especially where total motor length is crucial in space constrained applications. The large stator ID makes integration of larger ball bearings possible and the large clear aperture ID permits cabling to pass through the motor.

The excellent high torque-to-weight ratio is essential in applications where weight is critical

With an efficiency ranging from 83% to 90% in a wide speed-torque range, the motors are ideal for battery-fed applications, where they help maximize the running time per battery charge. The low cogging torque combined with high peak torque improves motor behavior in servo applications.

A recognized strength is our willingness and ability to develop custom motion control products and systems to meet your specific needs.
