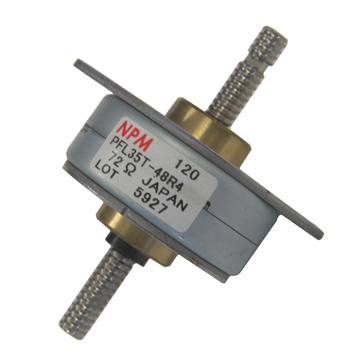

Nippon Pulse's PFL35T LINEARSTEP tin-can type linear actuator is designed to provide engineers with the ability to design a linear motion system at a low cost and with simplicity. The series offers direct linear motion without the need of any mechanical transformers. The product features an outer diameter of 35mm and features neodymium magnets, which allow for a high driving force. Because of its sturdy design and construction and its ball bearing support, the actuator is durable and has a long life cycle. It is available with three lead screw pitches (0.48mm, 0.96mm, and 1.2mm), both bipolar and unipolar windings, a force rating up to 39.5N (at 200pps), rated voltages of 5V and 12V, and 48 steps per revolution. Applications include microtiting tables, XY stages, liquid dispensing devices, medical pumps, semiconductor wafer handling machines, and data storage recorders.
