Offer torques up to 150 N

Motors & Drives

Steppers
Steppers

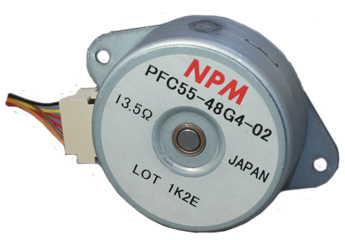

Available with unipolar and bipolar windings, the PF55 two-phase tin-can style stepper motors from Nippon Pulse respectively offer a holding torque of 120N and 150N for the two winding types. In a full-step (2-2) excitation mode, the motors provide 48 steps per revolution, a rated voltage of 5 and 12V, inductance between 12 and 37mH, and resistance between 5 and 36 ohms. They also come in a gear head model with 20 different ratio options, ranging from 6/25 to 1/300. These gear head motors provide maximum torques of 400, 700, and 1000 mNm. All variations are also available with a connector.

Posted on September 26, 2011 - (1122 views)
by
Nippon Pulse America, Inc.
4 Corporate Drive
24141 Radford - USA
+1-540-6330706
+1-540-6331674
View full company profile
