PID Sensor with high Sensitivity

  Enquire / contact me

Long term detection of volatile organic compound trace levels

Sensor Technology

PID Sensor with high Sensitivity
PID Sensor with high Sensitivity

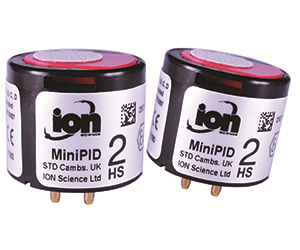

Designed for OEMs, the MiniPID 2 HS high sensitivity PID sensor is the latest in the range of PID sensors from Ion Science for sub-ppb level detection. The ground-breaking MiniPID 2 HS is 15 times more sensitive than the existing MiniPID 2 ppb sensor. It is capable of detecting trace levels of volatile organic compounds (VOCs) over a long period of time making it ideal for indoor air quality monitoring applications. It is also well suited to clean rooms, fence line monitoring, industrial hygiene, site soil and air sampling, fugitive emissions, volatile spills, law enforcement and emergency response. Delivering a dependable response to thousands of VOCs across many diverse applications, the MiniPID 2 HS is a simple plug and play sensor providing a wide detection range of 0.5 ppb up to 3 parts per million (ppm).

Self diagnostic function

Ion Science’s MiniPID 2 HS also features a re-designed, pneumatically sealed electrode stack for high sensitivity and a wide detection range. An innovative self-diagnostic feature indicates whether the electrode stack is contaminated or if the sensor is not operating correctly. The MiniPID 2 HS incorporates Ion Science’s long-life lamp that offers 10,000 hours continuous operation. Together with exceptional brightness and improved stability, this facilitates reliable detection of less volatile and less readily sensed compounds, over an extended period of time. Like Ion Science’s other sensors, MiniPID 2 HS incorporates patented Fence Electrode Technology which is proven to resist humidity and contamination for optimum detection of VOCs in challenging environments.


Posted on May 4, 2018 - (101 views)
Ion Science Ltd.
The Hive, Butts Lane
SG8 7SL Royston - United Kingdom
+44-1763 208503
+44-1763 290477
View full company profile
