VIBbox – Portable 64-Channel USB Measurement System
VIBbox – Portable 64-Channel USB Measurement System

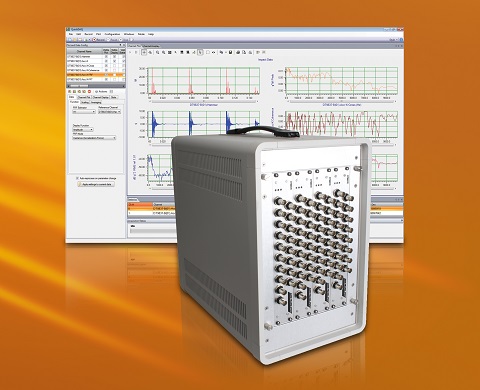

Data Translation announces the VIBbox, a complete and portable solution for sophisticated test and measurement tasks with high channel count. With 64 IEPE/ICP sensor inputs, eight analog outputs and four tachometer inputs as well as a multitude of digital I/Os and counter/timers, the USB measurement system is well equipped for acoustic and vibration analysis applications.

Data Translation announces the release of the VIBbox, a complete and portable solution for sophisticated test and measurement tasks with high channel count. With 64 IEPE/ICP sensor or voltage inputs, eight analog outputs and four tachometer inputs as well as a multitude of digital I/O channels and counter/timers, the USB measurement system is ideal for acoustic and vibration analysis applications.

In addition, the VIBbox ships with the QuickDAQ Advanced FFT Analysis option, which provides powerful spectrum analysis functions on the PC. Each of the 64 analog inputs of the VIBbox is equipped with a separate 24-bit A/D converter, allowing high-accuracy simultaneous acquisition of all analog and digital data at a sampling rate of up to 105.4 kHz per channel and continuous streaming to the PC.

Eight analog outputs (32-bit, 216 kHz) provide a high-precision signal source for any waveform. The VIBbox also includes 32/64-bit drivers for Windows and interfaces for LabVIEW, MATLAB and .NET.
