Convection Powder Brakes

  Enquire / contact me

Provide full torque at zero speed

Motors & Drives

Convection Powder Brakes
Convection Powder Brakes

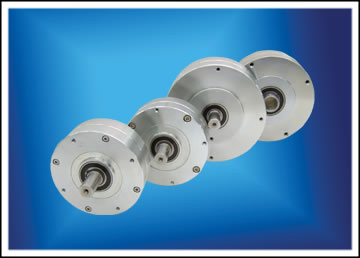

Magtrol's New CPB Series Convection Powder Brakes are good for applications operating in the low speed range or middle-to-high torque range. Convection powder brakes provide full torque at zero speed and are convection cooled, allowing power ratings up to 110 W. Convection powder brakes contain a magnetic powder. The electrical current passing through the coil generates a magnetic field, which changes the property of the powder, thus producing a smooth braking torque through magnetic coupling between the rotor and stator. The powder brakes are suited for tension control applications, such as wire winding, foil, film, and tape tension control. Mounted on test benches they allow performance and reliability testing on driving elements such as electric motors, hand-held power tools, geared motors, reduction gears and hydraulic transmission systems. Other applications include load simulation for life testing on electric motors, actuators, gearboxes, power steering, and many other rotating devices and assemblies.

Posted on April 16, 2013 - (2026 views)
by
Magtrol SA
Route De Montena 77 Centre technologique Montenaz
1728 Rossens/Fribourg - Switzerland
+41-26-4073000
+41-26-4073001
