Precise Low Differential Pressure Sensor

  Enquiry / contact me

Enables measurement up to ±100 Pa with an accuracy of ±0.5 Pa

Sensor Technology, Test & Measurement

Precise Low Differential Pressure Sensor
Precise Low Differential Pressure Sensor

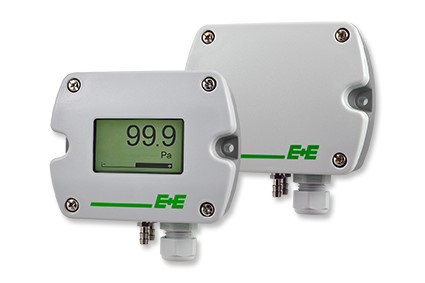

The EE610 by E+E Elektronik is an accurate low differential pressure sensor with selectable measuring ranges and versatile configuration options. Suitable for applications in air as well as in non-flammable and non-aggressive gases, it is used in medical, pharmaceutical and clean room applications, where the non-flow through design excludes cross-contamination. This sensor enables unidirectional or bidirectional differential pressure measurement within a selectable measuring range of 0...100 Pa or ±25, ±50 and ±100 Pa.


Fully configurable and simple mounting


Its piezo-resistive pressure sensing element delivers a high accuracy of ±0.5 Pa. The measured data is available as current and voltage signals simultaneously at the spring-loaded terminals. The reading is available in Pa, mbar, inch water column or mm H2O. Easy to configure, pressure range, time constant, output signal, display units and backlight can be set via DIP switches on the electronics board. Furthermore, the IP65 / NEMA 4 enclosure helps mount the sensor with closed cover, and the EE610 comes with a cable gland and a knockout opening for a ½” conduit adapter.

Posted on July 12, 2019 - (815 views)
