Chemically-resistant Sensor

  Enquire / contact me

For low liquid flow rates

Sensor Technology

Chemically-resistant Sensor
Chemically-resistant Sensor

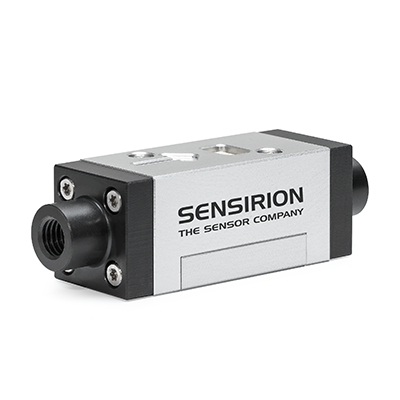

Sensirion is expanding its range of liquid flow sensors for measuring low flow rates. The new LS32‑1500 liquid flow sensor is designed for flow rates of 0-40 ml/min, extending the range of potential application areas over the successful LG16-series. A completely redesigned housing enables a compact size of 18x18x59 mm and ensures mechanical robustness. Its fast response time of 30 ms, repeatability and chemical resistance makes the sensor fit for use in biomedical applications, such as diagnostic analyzers. The sensor is versatile and suitable for use in fuel cells, for example, as well as a wide range of applications in dosage control and industrial automation monitoring. The sensor is completely non-invasive; the MEMS chip is located on the outer wall of a capillary and measures through the wall of this channel (US Pat. 6,813,944). The wetted materials are composed exclusively of high-performance stainless steel, PTFE and PEEK, which ensure outstanding biocompatibility and chemical resistance. Customized solutions (e.g. a downmount version for manifolds) based on the LS32‑series are also possible.

Posted on March 3, 2014 - (551 views)
by
Sensirion AG
Laubisrütistrasse 50
8712 Stäfa ZH - Switzerland
+41-44-306 40 00
+41-44-3064030
View full company profile
Description

Sensirion is a leading manufacturer of high-performance humidity sensors and flow sensor solutions. The product range includes humidity & temperature sensors, gas and liquid flow sensors, mass flow controllers, and differential pressure sensors.
