Humidity & Temperature Transmitter

  Enquire / contact me

For intrinsically safe industrial applications

Sensor Technology

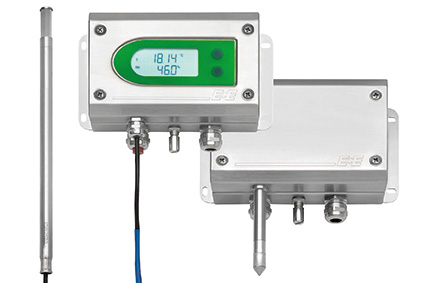

EE300Ex transmitter
EE300Ex transmitter

The new EE300Ex humidity and temperature transmitter from E+E Elektronik is designed for challenging industrial applications. The device complies with the ATEX Directives for intrinsically safe equipment, and can be employed in both hazardous and explosive gas and dust areas in zones 0 / 20. Thanks to its easy-to-clean, elegant stainless steel housing, the humidity­ transmitter is ideal for use in the pharmaceutical and chemicals industry. The EE300Ex can be mounted directly in the explosion hazard area of zones 0 / 20. The well proven E+E humidity sensor element guarantees long-term stability as well as precise and reliable measurements in the range of 0...100% rel. hum. and -40...180°C and from 0.01...300bar under pressure. The 2-part housing concept (separation of the connection area and measurement unit) simplifies more than the installation of the humidity transmitter. It also permits the rapid replacement of the measurement unit - such as for calibration - without time-consuming re-cabling. Various EE300Ex versions offer a high level of flexibility. As a compact wall mount version or with an up to 10m remote sensing probe, the humidity transmitter is ideal for a wide range of applications. The current values can be read off the device directly using the optional display.

Posted on March 11, 2013 - (1450 views)
by
E+E Elektronik Ges.m.b.H.
Langwiesen 7
4209 Engerwitzdorf - Austria
+43-7235-6050
+43-7235-6058
View full company profile
Description

E+E Elektronik offers a wide range of sensors and transmitters for reliable and highly accurate measurement of relative humidity, temperature, dew point, air velocity, moisture in oil, co2, mass flow.
