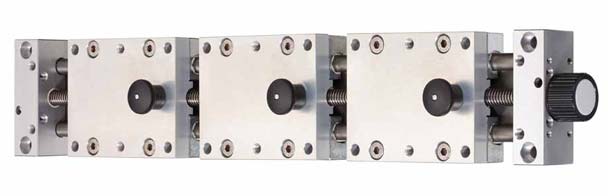

The SLW range comprises a standard drylin W slide which is adjustable via a leadscrew for precise movements. The drylin SLW Stop-and-Go allows multiple carriages to be on the same leadscrew but controlled separately. The range is available in anodised aluminium or stainless steel, and has high torsional stability as well as being flat, compact and completely supported. SLW systems can be mounted for movement in both the x- and y-axis, this is known as the SLW cross slide. Again, these systems are adjusted using a trapezoidal thread and, and are 100% lubricant free and corrosion resistant. The slide can be used in a number of industries, such as machine building and automation. Additionally, the stainless steel system, which comes with 3 options of liner – iglidur J for wet environments, iglidur X for high temperatures or iglidur A180 for applications that require FDA approval – is well-suited to applications in the food and packaging industries.

Posted on September 15, 2011 - (29 views)
by
igus GmbH
Spicher Straße 1a
51147 Köln - Germany
+49-2203-96490
+49-2203-9649222
