Lika Electronic offers a comprehensive range of housed and unhoused absolute modular encoders. These encoders excel in their miniature size, minimal weight, and high resolution. Furthermore, both the readheads and the rings can be fully customized to meet the specific requirements of each application.

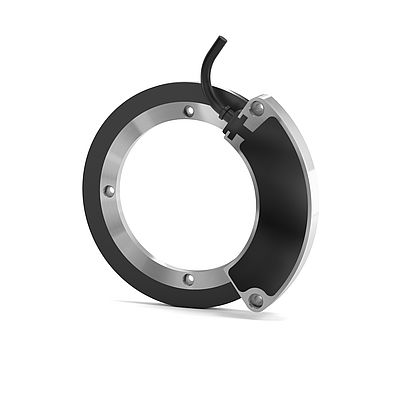

The SMAB off-axis encoder is designed for the harshest environments. Its electronics are fully overmolded and protected with an IP69K rating, allowing it to withstand dust, liquids, and contaminants. The MRAB ring features a large hollow bore up to 95 mm in diameter. It provides absolute position data via the SSI interface, with a resolution of up to 18 bits.

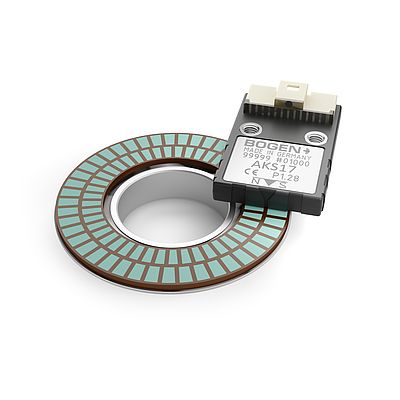

The AKS17 excels in compactness and versatility. It can be installed in both rotary and linear applications and paired with radial and axial rings. Despite its miniature size, it is IP67-rated and temperature-resistant, making it suitable for the most demanding industrial applications. The rotary resolution reaches up to 24 bits, while the linear resolution is as fine as 156 nm. The SSI and BiSS interfaces can be complemented with incremental and UVW signals.
